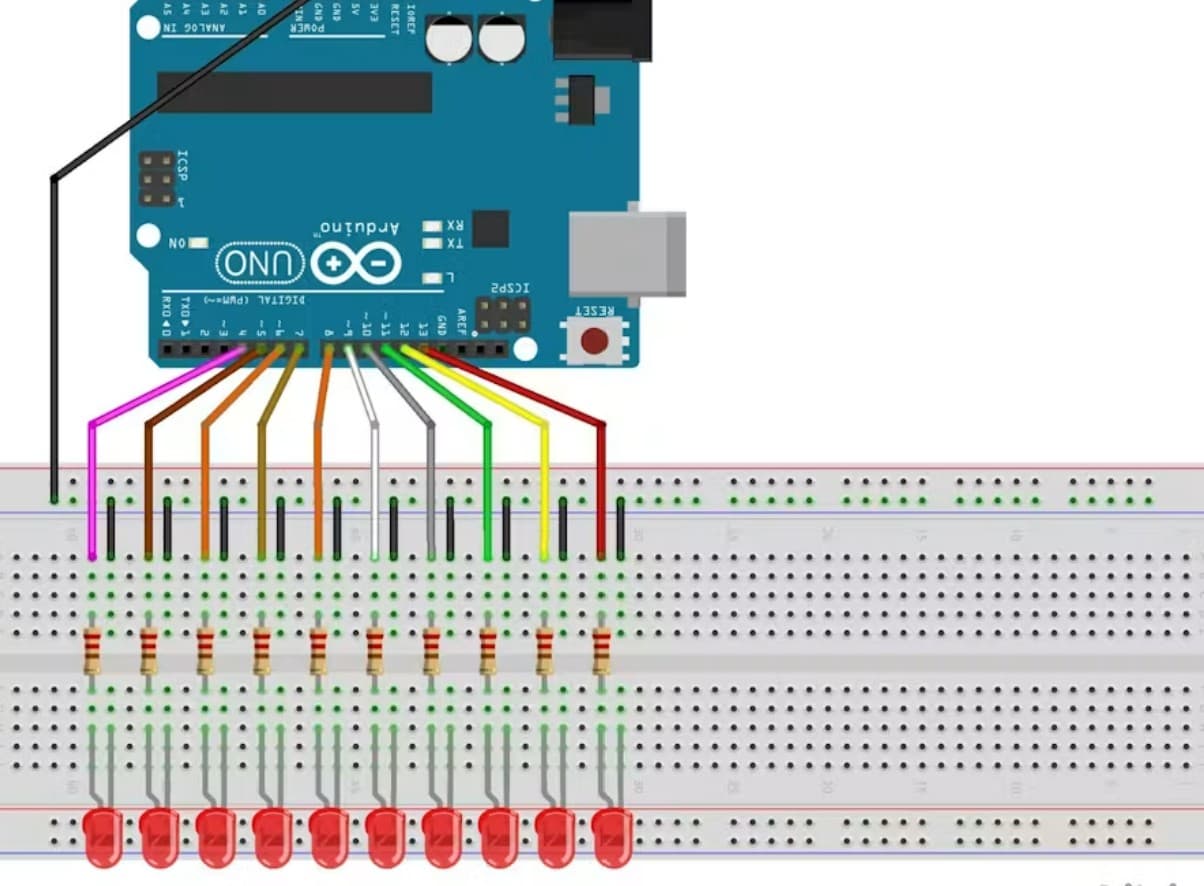

Wiring Schematic
Source Code
Get full C++ & Python code + lifetime access
Step-by-Step Build Instructions
10-Channel Arduino LED Sequencer: 20-Pattern Visual Display
The 10-Channel LED Sequencer is an embedded lighting project powered by an Arduino microcontroller, designed to orchestrate 20 distinct visual animation routines across a synchronized 10-LED strip. Utilizing dedicated GPIO pins from Digital Pin 4 through Digital Pin 13, this project highlights algorithm-driven LED animation, precise timing routines, and clean digital I/O management without relying on external driver ICs.
Project Overview
While traditional LED chasers are limited to simple unidirectional sweeps, this sequencer delivers dynamic motion profiles ranging from classic Larson scanners and Tetris-style block stacking to dual-opposing collision paths, theater marquees, and pseudo-random starry twinkles. Each animation is isolated into modular subroutines, making the codebase extensible for audio visualizers, interactive props, architectural models, and custom status dashboards.
Key Features
- 20 Custom Lighting Algorithms: Includes symmetrical expansions, comet tails, stacking physics, theater chases, and high-frequency strobes.
- Direct Microcontroller Drive: Utilizes 10 independent digital I/O lines (D4–D13) for flicker-free, full-duty cycle LED control.
- Modular Code Architecture: Each effect is encapsulated into a standalone function for easy reordering, duration tuning, or selective triggering.
- Zero External Dependencies: Built entirely with native Arduino C++ functions, eliminating the need for third-party libraries.
Hardware Required
- Arduion Uno
